    Cable Drum Power Rail Transfer Cart 250 Ton For Material Load

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPJ-1-500t
    Certification : CE,SGS,ISO9001
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 sets one year
    Delivery Time : 40-50 days as usual delivery,30-40days for urgent delivery
    • Product Details
    • Company Profile

    Cable Drum Power Rail Transfer Cart 250 Ton For Material Load

    Malaysia Cable Drum Power Rail Transfer Cart 250 Ton For Sale


    1. About BEFANBY Product

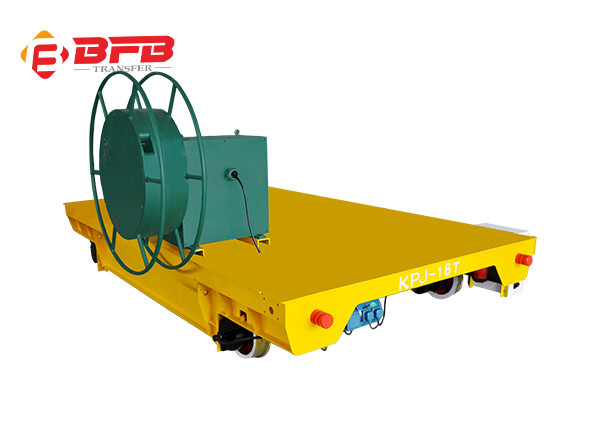

    I. Working principle:The cable drum power rail transfer carts are powered by spring cable drums which generally installed at the bottom of the carts or one side of the rail transfer cart. The one side of AC 380V cable is connected with the power source and the other side is linked to the motor. The cable is wound around cable drum.

    II. Main parts: Q235B cart frame, cast steel rail wheels, AC motor, Gear Reducer, Cable drum, Cable arranger, Electrical control box,Hand-held pendant, Remote Control, Alarm Light

    Cable Drum Power Rail Transfer Cart 250 Ton For Material LoadCable Drum Power Rail Transfer Cart 250 Ton For Material Load


    16 Ton Cable Drum Powered Transfer Trolley On Rails For Steel Plant


    III. Product Manufacturing Processing


    BEFANBY promise that quality is always the first concern, and BEFANBY specially set up a quality inspection department. Every time we complete a transfer carts, we must carry out strict quality control, including the appearance of electric transfer trolley, the operation of electric transfer trolley, etc.

    16 Ton Cable Drum Powered Transfer Trolley On Rails For Steel Plant


    IV. Technical parameter


    ModelKPJ 5TKPJ-45TKPJ-150T
    Rated Load(t)5T45T150T
    Table Size(mm)3500*2000*5505500*2500*70010000*3000*1200
    Wheel Base(mm)260042007000
    Rail Gauge(mm)143514352000
    Wheel Diameter(mm)300500600
    Wheel Quantity448
    Ground Clearance(mm)505075
    Running Speed(m/min)202020
    Motor Power1.55.515
    Max Wheel Load(KN)25.8174265.2
    Reference Weight(t)3.57.826.2
    Recommended Rail ModelP18P43QU100

    If you are interrested in our product, pls contact us.

    Thank you very much, and have a good time!


    16 Ton Cable Drum Powered Transfer Trolley On Rails For Steel Plant


    2. BEFANBY Company


    16 Ton Transfer trolley On Rails For Steel Plant


    Our customers from all over ther world, and BEFANBY product has exported to Thailand, Australia, Malaysia, Singapore, UAE, Saudi Arabia, South Korea, Mexico, etc.



    16 Ton Cable Drum Powered Transfer Trolley On Rails For Steel Plant
