    Manual Model Flatbed Material Transfer Carts Trailer For Concrete Floor Capacity 10tn

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : BWT
    Certification : CE, SGS, ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1500 sets per year
    Delivery Time : 15-20 working days for usual delivery
    • Product Details
    • Company Profile

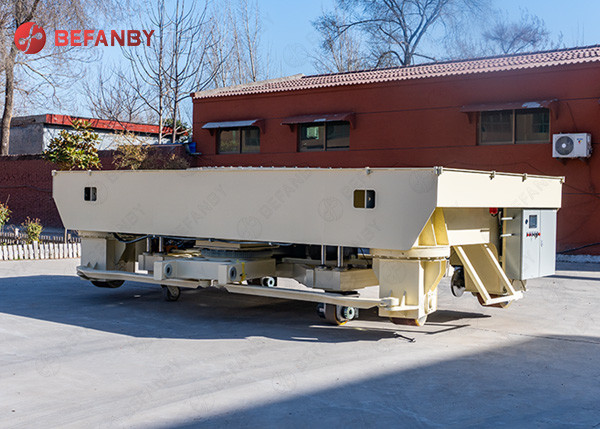

    Manual Model Flatbed Material Transfer Carts Trailer For Concrete Floor Capacity 10tn

    Manual Model Flatbed Trailer For Concrete Floor Capacity 10Tn


    BEFANBY manufactured the flatbed trailers can be pushed by manpower or towed by other vehicles,such as winch, forklift or tractor, A manual model flatbed trailer is a kind of truck that does not require a motor to provide driving force and has no power itself. This kind of manual model flatbed trailer can be divided into track use and ground use according to whether the rails is laid.
    Because this kind of flatbed trailer itself has no driving force, in order to make the flat car run, it is necessary to provide traction for the flat car. The size of the traction force here needs to be determined according to the weight and working conditions of the cargo.

    It is powered by forklift, so a drawbar is needed. There are two kinds of drawbar type, one is fixed length drawbar, the

    other is adjustable drawbar. The length can be customized as per customer's demand. The turning radius is designed as per car dimension.


    Advantages of no power transfer trailer

    • Box girder structure, not easy to deform
    • Low cost
    • Anti-explosion and anti- high temperature
    • Cab be towed or push by manual
    • Durable
    • Environmental

    Manual Model Flatbed Material Transfer Carts Trailer For Concrete Floor Capacity 10tn


    Main of no power transfer cart

    The main parts of the forklift transfer cart includes cart frame, towed hook, cast wheel, control box, etc.



    Manual Model Flatbed Material Transfer Carts Trailer For Concrete Floor Capacity 10tn

    The parameter of non power flatbed trailer
    ModelKP-2tKP-20tKP-50tKP-100tKP-150t
    Rated Load(t)22050100150
    Table Size(mm)Length(L)200040005500650010000
    Width(W)15002200250028003000
    Heigth(H)4505506508501200
    Wheel Base(mm)12002800420049007000
    Rail Inner Gauge(mm)12001435143520002000
    Wheel Diameter(mm)270350500600600
    Wheel Quantity44448
    Ground Clearance(mm)5050507575
    Max Wheel Load(KN)14.477.7174343.8265.2
    Reference Weight(t)2.85.9814.626.8
    Recommended Rail ModelP15P24P43QU100QU100

    Packing& Delivery of no power transfer trailer

    Manual Model Flatbed Material Transfer Carts Trailer For Concrete Floor Capacity 10tn


    Company Introduce


    Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

    flatbed trailer 10tn

    You can copy the following options and click here to select your specific requirement for the transfer cart to send us. And then the proper solution and price will be sent to you.


    1. The load capacity of the transfer cart is ( ) ton.


    2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).


    3. The transfer cart runs on the rails or common floor?


    4. Whether exist turning?


    5. Whether has other special requirement?
