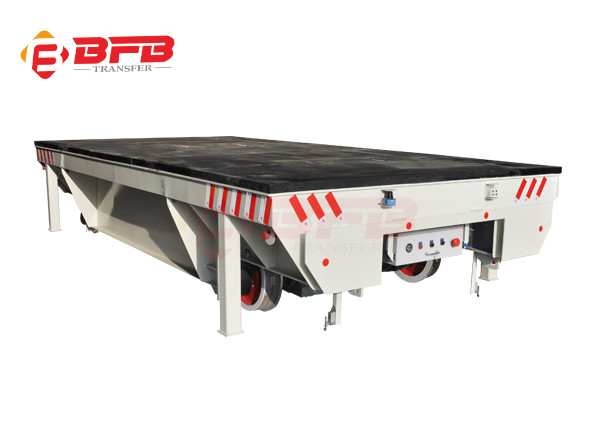

    45 Tons Battery Transfer Cart Steerable Steel Shop Floor Rail Trolley For Factory

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPX
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1500 set/sets, per year
    Delivery Time : 40-50 days as usual delivery,30-40days for urgent delivery
    • Product Details
    • Company Profile

    45 Tons Battery Transfer Cart Steerable Steel Shop Floor Rail Trolley For Factory

    45 Tons Steerable Steel Shop Floor Rail Trolley Factory

    BEFANABY develops and produces handling equipment, not only can customize standard electric transport carts, but also customize non-standard electric transport carts for handling various molds.
    The steel shop floor rail trolley is a rail-type transportation vehicle, which needs to lay a rail on the ground. The rail is generally an I-shaped surface contacting the rails; secondly, it is an electric drive trolley, which runs automatically under the drive of a motor reducer. This kind of transport trolley has a flat surface without a cover, and sometimes it can be non-planar but without a cover. The cart body has no steering wheel, only forward and backward directions (even if it turns, it will turn on the track). This kind of vehicle has the characteristics of simple structure, convenient use, large carrying capacity, no fear of being dirty or smashed, easy to maintain, and long-term use. A means of transport that frequently carries heavy loads over short distances.


    Maintenance Attention

    1. The air duct of the motor must be unobstructed, and no heat source can be placed around the motor, and preventive measures should be taken in time when problems are found.
    2. Under normal conditions, change the grease every six months. When replacing the grease, first wash the bearing with kerosene or gasoline, and then fill two-thirds of the bearing chamber with grease, too much or too little is not good for lubrication.
    3. The motor should be inspected regularly, usually a minor inspection every three months, and an overhaul once a year. If the motor winding is burned out due to an accident, it should be disassembled in time to analyze the cause. Usually, the auxiliary winding is burned out due to the failure of starting switching or the capacitor is short-circuited; the main winding is burned out due to long-term overload or stalled starting. Replace the motor winding and remove the cause of the accident before it can be reused.
    4. During the use of the electric rail trolley, it is necessary to regularly check the technical status of each component, clean up the dust, water, oil and iron filings that may enter the body in time, and do a good job in the daily maintenance of the electric rail trolley.

    45 Tons Steerable Steel Shop Floor Rail Trolley Factory


    Customized Manufacturer
    ModelKPX-10tKPX-16tKPX-25tKPX-30tKPX-40tKPX-50tKPX-63tKPX-80tKPX-100tKPX-150t
    Rated Load1016253040506380100150
    Table sizeLength(L)36004000450045005000550056006000650010000
    Width(W)2000200022002200250025002500260028003000
    Height(H)5005506006006506507008009001200
    Wheel Base2600280032003200380042004300470049007000
    Rail Inner Gauage1435143514351435143514351435180020002000
    Wheel Diameter300350400400500500600600600600
    Wheel Quantity4444444448
    Ground Clearance50505050505075757575
    Running Speed25202020202020202018
    Motor Power22.23.5456.38101515
    Battery Capacity160180250250300330400400440600
    Battery Voltage48484848484848727272
    Max Wheel Load42.664.594.5110.4142.8174221.4278.4343.8265.2
    Reference Weight4.25.56.56.87.6810.812.814.626.8

    All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.

    battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply

    steel rail trolleysBattery Powered Flatbed Steel Structure Transport Cart 10mt

    rail trolley factory


    Detailed Images of steerable steel shop floor rail trolley factory

    45 tons rail trolley manufacturer

    steerable rail trolley on rails


    battery powered transfer cart rail power supply trolley line motorized rail cart cable power supply
