Self Propelled 20t Rails Coils Material Transfer Carts With U Frame

Ask Lasest Price
Brand Name :	BEFANBY
Model Number :	coil
Certification :	CE, SGS, ISO9001
Price :	Negotiation
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1000 sets per year
Delivery Time :	20-30 working days for usual delivery

Add to Cart

Product Details
Company Profile

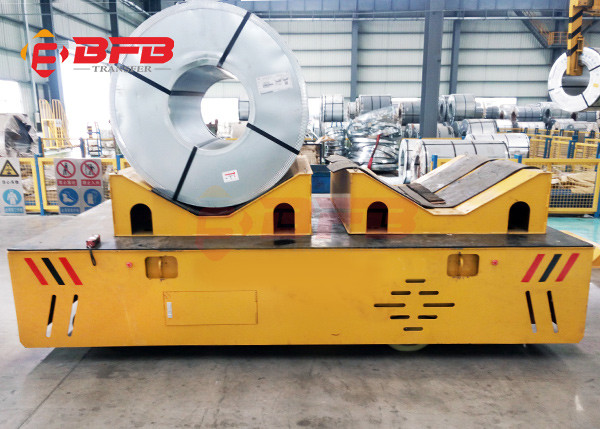

Self Propelled 20t Rails Coils Material Transfer Carts With U Frame

self propelled 20t rails coils transpot cart with u frame

20t coils rail transport cart is a kind of non-standard track electric transfer car. on the basis of standard electric transfer cart, platform is added to fix steel. the platofrms of our coil transport carts have two special models: v-shaped bracket and roller bracket to prevent rolling and falling of coil steel. the roller bracket can also adjust the suitable spacing according to the coil size to prevent rolling due to non close fixation. the v-frame, roller frame and vehicle body are movable links, which can be disassembled at any time to transport other materials. coil transport cart can be used in many occasions and harsh environment. the coil electric flat car can be designed and customized according to the needs of users and the actual application situation in the production workshop. its rated load is 0-150t; it can choose one of battery, cable, low-voltage rail and cable reel as power supply mode; its running speed is between 0-20m / min; it can be operated by handle or wireless remote control.

Self Propelled 20t Rails Coils Transpot Cart With U Frame

Technical Parameter

1. model: rail coil transport cart

2. load: 5 ton

3. wheel type: running on rails

4. power supply: maintenance free battery

5. drive working speed: 0-20mmin (variable speed)

6. running distance: unlimited

7. operation mode:wireless remote control & hand operate pendant

8. use: assembly line metallurgical industry warehouse shipbuilding workshop workpiece lathe transportation steel plant building petroleum industry energy

support customization

Self Propelled 20t Rails Coils Transpot Carts With U Frame

Character Showing

1. high level automation(self propelled/steerable)
2. The largest capacity can reach to 500t
3. Safe parts are installed in the transfer car(warning light, e-stop, buffer...)
4. Robust sturdy car frame
5. AC/DC electric engine , diesel engine or pneumatic engine
6. Excellent gear reducer and motor with high quality, assemblied together perfectly
7. Remote control&hand pendant control make the opration more convenient.
8. The speed can be adjusted.
9. Easy operation and maintenance

10. Famous brand parts, guarantee the quality and prolong the using lifetime

11. Low noise and do not pollute the environment

Self Propelled 20t Rails Coils Transpot Cart With U Frame

Working Principle

The kinds of coil transfer car is battery powered . The battery is installed in the cars. The batteries supplied the electricity to the DC motor through the electrical control system. By this ways, we can make the transfer car

to start, stop, go forward , back ward , adjust the speed and so on.

Self Propelled 20 ton Rails Coils Transpot Cart With U Frame

Technique Parameter

Model		KPX-5t	KPX-20t	KPX-25t	KPX-30t	KPX-40t	KPX-63t	KPX-80t	KPX-100t	KPX-150t
Rated Load		5	20	25	30	40	63	80	100	150
Table size	Length(L)	3500	4000	4500	4500	5000	5600	6000	6500	10000
	Width(W)	2000	2200	2200	2200	2500	2500	2600	2800	3000
	Height(H)	500	550	600	600	650	700	800	900	1200
Wheel Base		2500	2800	3200	3200	3800	4300	4700	4900	7000
Rail Inner Gauage		1435	1435	1435	1435	1435	1435	1800	2000	2000
Wheel Diameter		300	350	400	400	500	600	600	600	600
Wheel Quantity		4	4	4	4	4	4	4	4	8
Ground Clearance		50	50	50	50	50	75	75	75	75
Running Speed		25	20	20	20	20	20	20	20	18
Motor Power		1.2	3	3.5	4	5	8	10	15	15
Battery Capacity		180	180	250	250	300	400	400	440	600
Battery Voltage		36	48	48	48	48	48	72	72	72
Running Time When Full Load		5.4	4	4	3.5	3.6	3	3.6	3.2	2.9
Max Wheel Load		25.8	77.7	94.5	110.4	142.8	221.4	278.4	343.8	265.2
Reference Weight		3.6	5.9	6.5	6.8	7.6	10.8	12.8	14.6	26.8
Recommended Rail Model		P18	P24	P38	P38	P43	P50	P50	QU100	QU100

Our Company

Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

Self Propelled 20t Rails Coils Transpot Cart With U Frame

You can copy the following options and click here to select your specific requirement for the transfer car to send us. And then the proper solution and price will be sent to you.

1. The load capacity of the transfer car is ( ) ton.

2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).

3. The voltage is ( ) V, ( ) HZ, 3 phase.

4. The running time is ( ) hours per day.

5. The running distance is ( ) m per time.

6. The transfer cart runs on the rails or common floor?

7. Whether exist turning?

8. Whether has other special requirement?
