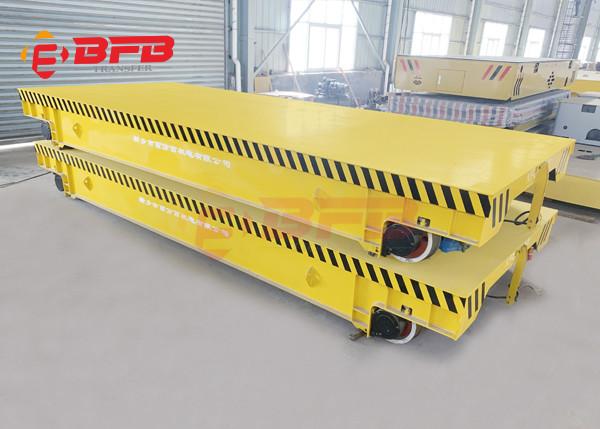

    Hand Pendant Cable Drum Motorized Transfer Trolley 1500T Load

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPJ-1-500t
    Certification : CE,SGS,ISO9001
    Price :
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets one year
    Delivery Time : 40-50 days as usual delivery,30-40days for urgent delivery
    • Product Details
    • Company Profile

    Hand Pendant Cable Drum Motorized Transfer Trolley 1500T Load

    Cable Drum Powered Electric Rail Cart And Track Manufacturer


    1. About BEFANBY Product


    Working principle:The electric rail cart and track manufacturer are powered by spring cable drums which installed at the bottom of the rail cart or one side of the rail cart. The one side of AC 380V cable is connected with the power source and the other side is linked to the motor. The cable is wound around cable drum.


    IV. Advantages:

    1. Simple structures

    2. Comparatively low costs

    3. Unlimited using time

    4. No strict requirements of the railway's construction.

    5. Sound and light alarm lamp,alarm worker to make the walk safer

    6. Dead man stop, Stop automatically when pedestrian or obstacle is detected

    7. Emergency stop button, can make the cart stop immediately

    8. Limit switches and buffers on both sides

    9. The structural parts are made of Q235B rolled steel plate, 1.5 times load design and 1.25 times load test

    10. With conventional electrical protection: over current, over voltage, under voltage, short circuit, overheating, grounding, leakage and other protective devices

    11. Optional radio control operation


    V. Technical parameter


    ModelKPJ 6TKPJ-50TKPJ-150T
    Rated Load(t)6T50T150T
    Table Size(mm)3500*2000*5505500*2500*70010000*3000*1200
    Wheel Base(mm)260042007000
    Rail Gauge(mm)143514352000
    Wheel Diameter(mm)300500600
    Wheel Quantity448
    Ground Clearance(mm)505075
    Running Speed(m/min)202020
    Motor Power1.55.515
    Max Wheel Load(KN)25.8174265.2
    Reference Weight(t)3.57.826.2
    Recommended Rail ModelP18P43QU100

    If you are interrested in our product, pls contact us.

    Thank you very much, and have a good time!


    Cable Drum Powered Electric Rail Cart And Track ManufacturerCable Drum Powered Electric Rail Cart And Track Manufacturer

    Cable Drum Powered Electric Rail Cart And Track Manufacturer


    Cable Drum Powered Electric Rail Cart And Track Manufacturer


    Cable Drum Powered Electric Rail Cart And Track Manufacturer


    2. BEFANBY Company


    Cable Drum Powered Electric Rail Cart And Track Manufacturer


    Our customers from all over ther world, and BEFANBY product has exported to Thailand, Malaysia, Singapore, UAE, Saudi Arabia, South Korea, Mexico, etc.
