    PU Industrial Mecanum Wheels 203mm 300kg - 600kg Load

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : Mecanum Wheel
    Certification : ISO,CE
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100 piece/pieces, per month
    Delivery Time : 30-40 days as usual delivery,20-30days for urgent delivery
    • Product Details
    • Company Profile

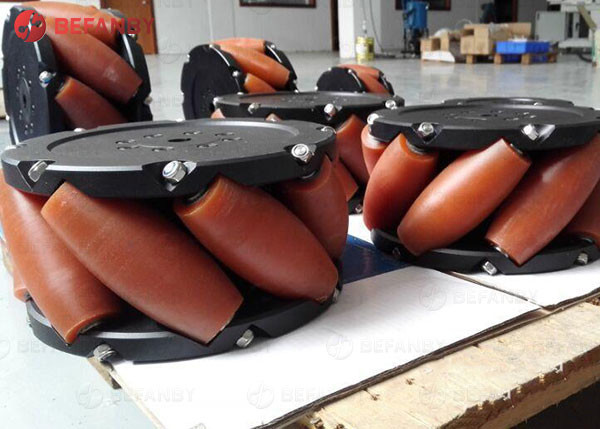

    PU Industrial Mecanum Wheels 203mm 300kg - 600kg Load

    300kg-600kg Load 203mm Industrial Mecanum Wheels


    Product Description of Mecanum Wheel


    The mecanum wheel is a wheel design capable of achieving all-round movement. Its unique design enables the robot or vehicle to move in any direction on the ground without changing direction or steering. Omnidirectional mobility is very useful in many fields, especially in robotics and autonomous navigation systems.


    • Principle of mecanum wheel

    The principle of all-round movement of the mecanum wheel is based on its unique wheel design. The mecanum wheel usually consists of multiple small wheels placed diagonally, each surrounded by a space between the teeth. This special design allows the mecanum wheel to achieve omnidirectional movement.


    As the mecanum wheel rotates, the teeth of each small wheel create friction with the ground. By properly controlling the rotation speed and direction of each small wheel, the robot or vehicle can achieve movement in any direction. For example, if the front and back wheels rotate at the same speed, the robot will move forward. If the left front and right rear wheels rotate at the same speed, the robot will move to the left. This omnidirectional mobility makes the mecanum wheel an important part of many automated navigation systems.


    • The structure of mecanum wheel

    Small wheels are usually made of materials such as rubber or plastic to obtain sufficient friction. They are usually mounted on metal or plastic hubs to ensure their stability and reliability. It is important to ensure the high quality of the materials and construction of the mecanum wheel to ensure its reliability and durability in a variety of environments.


    In addition, mecanum wheels usually need to be used in conjunction with appropriate motors and control systems. The motor is responsible for driving the rotation of the small wheels, while the control system is responsible for calculating and controlling the speed and direction of each small wheel. This combination enables the robot or vehicle to move in various ways to achieve all-round mobility.


    • Application of mecanum wheel

    Mecanum wheels are widely used in many fields, especially in the field of autonomous navigation and robotics. Here are a few examples of the application of the mecanum wheel:


    1. Automatic navigation system: the mecanum wheel can make the automatic navigation vehicle move freely in a small space. For example, in a warehouse or factory, robots in the mecanum wheel can easily shuttle between shelves, enabling efficient logistics operations.

    2. Medical devices: mecanum wheels can be applied to medical devices, such as surgical robots. By using the mecanum wheel, the surgical robot can perform accurate and precise movement in the operating room, providing a better operating environment for the doctor.

    3. Service robots: The mecanum wheel can also be applied to service robots, such as guide robots or home assistant robots. These robots can take advantage of the omnidirectional mobility of the mecanum wheel to provide effective services in a variety of environments.

    4. Education and Research: mecanum rounds are also very popular in education and research. Students and researchers can use the mecanum wheel to build their own robots and learn and investigate the principles and applications of omnidirectional mobility.


    300kg-600kg Load 203mm Industrial Mecanum Wheels300kg-600kg Load 203mm Industrial Mecanum Wheels for agv


    Product Details Of Mecanum Wheel


    300kg-600kg Load 203mm Industrial Mecanum Wheels for trolley


    Product Parameter Of mecanum wheel


    ModelM15-150M20-500M25-1000M31-2500M50-4000
    Measured diameter(mm)151(6”)203(8”)314(12”)406(16")508(20”)
    Width(mm)75105158209255
    Pour round number(PC)88888
    Bearing typeSliding bearingNeedle bearing
    Roller materialPolyurethane (PU)
    Wheel hub material45 # steelAviation aluminum 7075
    Roller core material45 # steelAviation aluminum 7075
    Wheel hub surface treatmentElectro nickellingSurface anodizing
    Type of connectionShaft cover + keywayFlange
    Dead weight(kg)4.1513.164545.587.5
    Single wheel load(kg)150500100025004000
    Four wheel load(kg)500150035008000130000
    Note: the above parameters are for reference only, according to the actual signed technical agreement configuration prevail, can undertake non-standard customization.

    Moving Direction Of Mecanum Wheel


    300kg-600kg Load 203mm Industrial Mecanum Wheels
