    Annealing Furnace Using 30 Ton Platform Trolley Railway

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPT
    Certification : CE, SGS, ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1500 set/sets per year
    Delivery Time : 40-50 days as usual delivery,30-40days for urgent delivery
    • Product Details
    • Company Profile

    Annealing Furnace Using 30 Ton Platform Trolley Railway

    Annealing Furnace Using 30 Ton Platform Trolley Railway

    Brief Introduction Of Annealing Furnace Using 30 Ton Platform Trolley Railway

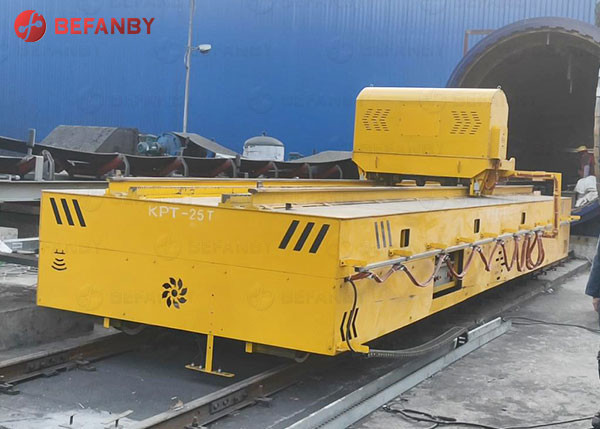

    This cart is designed and manufactured based on the consider of annealing furnace application.The cart is made up of two carts: top cart and bottom cart,and these two carts running direction are vertical.The bottom cart is used to connect the annealing furnace.The bottom cart rails are connected with the rails in annealing after they are overturned.Overturned arm mounted on top cart is used to push and pull the equipment in furnace.This design avoid that the high temperature influences influences the electrical.Mobile rails and mobile overturning arm can automatically connect,which greatly increase the production efficiency.


    Annealing Furnace Using 30 Ton Platform Trolley RailwayAnnealing Furnace Using 30 Ton Platform cart Railway

    Parts Of Annealing Furnace Using 30 Ton Platform Trolley Railway

    Annealing Furnace Using 30 Ton Platform carts on Railway

    Product Features Of Annealing Furnace Using 30 Ton Platform Trolley Railway

    Annealing Furnace Using 30 Ton transfer Trolley Railway

    Advantage

    Annealing Furnace Using 30 Ton Platform Trolley on track
    Annealing Furnace used 30 Ton Platform Trolley Railway

    Technique Parameter Of Annealing Furnace Using 30 Ton Platform Trolley Railway

    ModelKPT-2tKPT-5tKPT-10tKPT-16tKPT-20tKPT-25tKPT-30tKPT-40tKPT-50tKPT-63tKPT-80tKPT-100tKPT-150t
    Rated Load25101620253040506380100150
    Table sizeLength(L)20003500360040004000450045005000550056006000650010000
    Width(W)1500200020002000220022002200250025002500260028003000
    Height(H)4504505005005506006006506507508008501200
    Wheel Base1200250026002800280032003200380042004300470049007000
    Rail Inner Gauage1200143514351435143514351435143514351435180020002000
    Wheel Diameter270300300350350400400500500600600600600
    Wheel Quantity4444444444448
    Ground Clearance50505050505050505075757575
    Running Speed25252520202020202020202018
    Motor Power0.81.51.52.22.5345.55.57.57.51115
    Max Wheel Load14.425.842.664.577.794.5110.4142.8174221.4278.4343.8265.2
    Reference Weight2.33.33.855.566.37.27.610.312.113.926
    Recommended Rail ModelP15P18P18P24P24P38P38P43P43P50P50QU100QU100

    Application

    Annealing Furnace Using 30 Ton Platform transfer cart Railway

    Annealing Furnace used 30 Ton flat Trolley Railway

    Delivery

    Annealing Furnace Using 30 Ton Platform electric Trolley Railway

    Brief Introduction

    Annealing Furnace Using 30 Ton Platform Trolley Rails

    Annealing Furnace Using 30 Tons Platform Trolley Railway
