    Battery Powered Automatic High Load AGV Automatic Guided Vehicle 1500kg

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : AGV battery
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1500 set/sets, per year
    Delivery Time : 40-50 days as usual delivery,30-40days for urgent delivery
    • Product Details
    • Company Profile

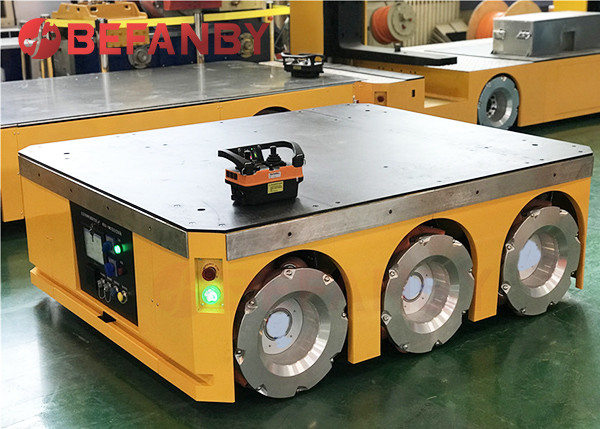

    Battery Powered Automatic High Load AGV Automatic Guided Vehicle 1500kg

    Battery Powered Automatic High Load AGV 1500kg

    Product Description Of Battery Powered Automatic High Load AGV 1500kg

    Automatic high load AGV is the key equipment of automated logistics transportation system and flexible production system, and plays an important role in automated logistics warehouse.


    A fully functional AGV system usually consists of three parts: walking mechanism, sensing system and control system. Walking mechanism is the basis of AGV movement, which determines the movement space and freedom of AGV. The sensor system determines its navigation mode, and the mainstream uses laser sensors, ultrasonic sensors, photoelectric sensors, magnetic sensors and so on.


    The main components of AGV include: guiding detector, steering wheel, driving wheel, motor, steering mechanism, battery, frame, brake, controller.


    AGV transfer cart battery and charging device: the battery is maintenance-free battery or lithium battery, the charger is portable, occupies a small area.


    Driving device: The driving device of AGV is composed of wheel, reducer, brake, driving motor and speed controller, which is the device to control the normal operation of AGV. The operation instruction is issued by computer or manual controller, and the operation speed, direction and brake adjustment are controlled by computer respectively. For safety, the brake device can be mechanically actuated in case of power failure.
    AGV transfer cart controller: accepts the instructions of the control center and executes the corresponding instructions, and feeds back its own status (such as position and speed, etc.) to the control center in time.
    Communication device: realize the information exchange between AGV and ground control station and ground monitoring equipment.
    AGV safety protection device: The safety system includes the protection of AGV itself, the protection of people or other equipment, etc.


    Information transmission and processing device: the main function is to monitor the AGV, monitor the ground state of the AGV, and transmit information with the ground control station in real time.


    Battery Powered Automatic High duty AGV 1500kg

    Battery Powered High Load automatic AGV 1500kg


    Application Of Battery Powered Automatic High Load AGV 1500kg

    steering Battery Powered Automatic High Load AGV transfer cart 1500kg

    Parts Details Of Battery Powered Automatic High Load AGV 1500kg

    Battery Powered Automatic High Load AGV 2 tons

    Product Parameter Of Battery Powered Automatic High Load AGV 1500kg

    ModelAGV-2TAGV-5TAGV-10TAGV-20TAGV-30TAGV-40TAGV-50T
    Rated load(t)251020304050
    Table SizeLength(mm)2000250030003500400050005500
    Widthmm)1500200020002200220022002500
    Heigth(mm)450550600800100012001300
    Wheel Base(mm)1080165016501650165020002000
    Wheel Dia.(mm)Φ200Φ280Φ350Φ410Φ500Φ500Φ550
    Battery Voltage(V)48484872727272
    Weel Quantity(pcs)4444444
    Ground Clearance(mm)50505050505050
    Max Wheel load(KN)14.425.842.677.7110.4142.8174
    Reference Wight(t)2.33.64.25.96.87.68
