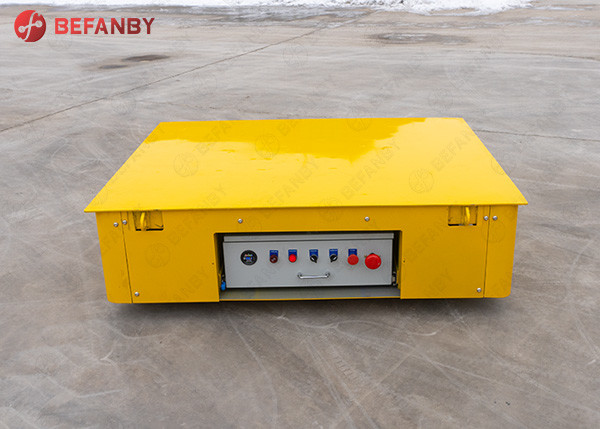

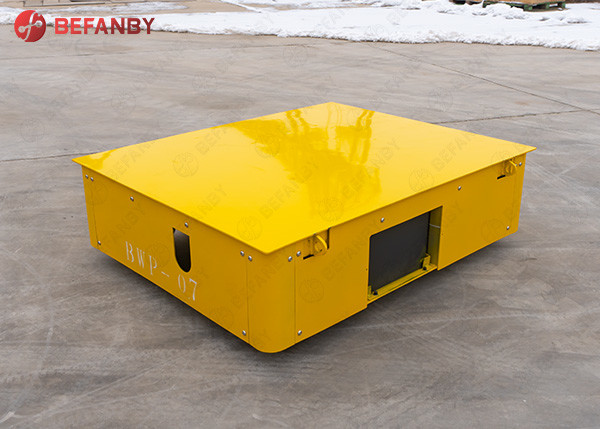

Remote Control 4 Wheel Trackless Transfer Cart

Product Description

Unlike traditional rail flat cars, which can only be used in venues with tracks, trackless electric flat cars are more mobile. It is not restricted by a fixed site and can run on relatively flat ground. It is suitable for a variety of industries, such as manufacturing, warehousing and logistics, airports, ports, etc. In addition, trackless electric flat cars can also be customized with different sizes and loads according to different needs.

Since the trackless electric flat car is driven by electricity, it is safer. Traditional rail flat cars are more robust and can carry larger loads. However, operators of rail flat cars need to receive professional training to operate this type of car, and maintenance costs are high. Therefore, from the aspects of safety and economy, trackless electric flat cars have obvious advantages.

Application

Product Details

Product Parameter

Model		BWP-2T	BWP-5T	BWP-10T	BWP-15T	BWP-20T	BWP-25T	BWP-30T	BWP-40T	BWP-50T	BWP-60T	BWP-70T	BWP-80T	BWP-100
Rated load(t)		2	5	10	15	20	25	30	40	50	60	70	80	100
Table Size	Length(L)	2000	2200	2300	2400	2400	3500	3500	5000	5500	5600	6000	6500	6600
	Width(W)	1500	2000	2000	2100	2200	2200	2200	2500	2600	2500	2600	2800	3000
	Heigth(H)	450	500	550	600	600	700	700	800	800	850	900	950	1200
Wheel Base(mm)		1080	1650	1650	1600	1650	1650	1650	2000	2000	1800	1850	1950	2000
Axle Base(mm)		1380	1680	1700	1830	1850	2700	2700	3600	2850	2900	3500	3500	4000
Wheel Dia.(mm)		Φ250	Φ300	Φ350	Φ400	Φ400	Φ450	Φ450	Φ500	Φ600	Φ600	Φ600	Φ600	Φ600
Wheel Quantity(pcs)		4	4	4	4	4	4	4	4	4	4	6	6	8
Ground Clearance(mm)		50	50	50	50	50	50	50	50	50	75	75	75	75
Running Speed(mm)		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-18
Motor Power(kw)		2*1.2	2*1.5	2*2.2	2*3.5	2*4.5	2*5.5	2*5.5	2*6.3	2*7.5	2*10	2*12	30	40
Batter Capacity(Ah)		250	180	250	330	400	400	450	440	500	600	600	800	1000
Battery Voltage(V)		24	48	48	48	48	48	48	72	72	72	72	72	72
Running Time When Full Load		2.5	2.88	2.8	2.3	2.2	1.8	2	2.6	2.5	2.2	1.8	2	1.9
Running Distance for One Charge(Km)		3	3.5	3.4	2.8	2.7	2.2	2.4	3.2	3	2.7	2.2	2.4	2.3
Max Wheel load(KN)		14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4	152	185	190
Reference Wight(t)		2.3	3.6	4.2	5.5	5.9	6.5	6.8	7.6	8	10.8	12.8	14.6	26.8

Product Feature

Production Procedure

Our Advantages

Shipping

Company Profile

Related Products

Product Tap: Material Handling Cart , Rail Transfer Cart

Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd.(BEFANBY) is a professional international material handling equipment company integrating R&D, design, production and sales. It has a modern management team, technical team and production technician team.The company was established in September 2003 and is located in Xinxiang, Henan. BEFANBY can not only provide transfer cart quotations, but also provide you with satisfactory handling solutions.

BEFANBY has an annual production capacity of more than 1,500 sets material handling equipment, which can carry 1-1,500 tons of workpieces. With more than 20 years of experience in the design of electric transfer carts, it already has the unique advantages and mature technology of designing and producing heavy-duty AGV and RGV. The main products include AGV (heavy duty), RGV, KPD low-voltage rail type, KPX battery type, KPT towing cable type, KPJ cable reel type, KPC sliding contact line type, BWP trackless type, KP unpowered type, BZP turntable , BWT flatbed trailer and other eleven series. Including conveying, turning, coil, ladle, painting room, sandblasting room, ferry, hydraulic lifting, traction, explosion-proof and high temperature resistant, monorail, generator power, railway maintenance cart, railway and road tractor, locomotive turntable and other hundreds of handling equipment and a variety of transfer cart accessories. Among them, the explosion-proof battery electric transfer cart has obtained the national explosion-proof product certification, number: CNV21.0215X.

BEFANBY products are sold to all over the world, such as United States, Canada, Mexico, Germany, Chile, Russia, Saudi Arabia, the United Arab Emirates, Thailand, Singapore, Indonesia, Malaysia, Australia, South Korea and other more than 90 countries and regions.

1. Material handing equipment

• AGV Automatic Guided Vehicle; RGV Rail Guided Vehicle
• Rail transfer cart, motorized transfer trolley, coil transfer cart
• Ladle transfer car, turning transfer cart
• Hydraulic lifting transfer cart
• Customized Transfer Cart
• Electric turntable
• Trackless transfer car
• Train tractor
• Flatbed Trailer
• Winch
• Railway wheel
• Steel rails

2. Product line, assembly line and workshop, warehouse handling solution provide

Painting line

Mold handing in workshop

Steel coil, ladle, steel scrap handling on production line

Workshop crossing rail layout handling solution

90 Degree turning rail path handling solution

Arc rail factory handling routie handling

Our Marketing Concept:

Attentively Manufacturng; Keeping on improving and elaborately serving to make our customers satisified.
