    Full Automatic Electrical Mobile Scissor Lift Table

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : lift platform
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1500 set/sets, per year
    Delivery Time : 20-30 days as usual delivery
    • Product Details
    • Company Profile

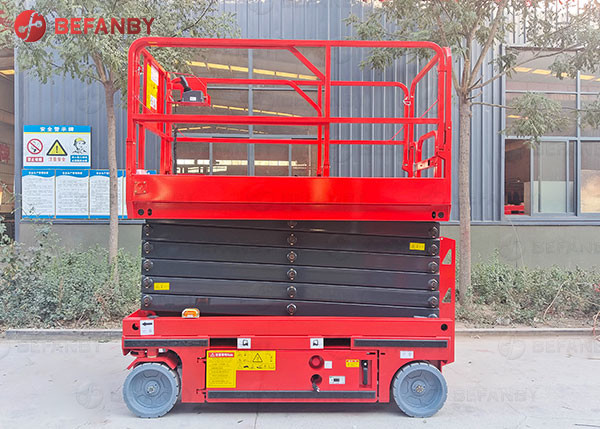

    Full Automatic Electrical Mobile Scissor Lift Table

    Full Automatic Electrical Mobile Scissor Lift Table

    Product Description

    Lifting platform is a special kind of machine equipment, which usually consists of workbench, lifting mechanism, hydraulic drive device, electrical control device, metal structure, safety device and other components.
    The electrical control device consists of two parts: an electrical cabinet and a manipulator. The electrical cabinet is responsible for controlling the electrical signals of the oil pump and actuator, and the manipulator is responsible for executing instructions and controlling the up and down movement of the entire equipment.
    Generally speaking, the electrical control system of the lifting platform is divided into two types: manual control and automatic control. Manual control methods usually use buttons, switches and other buttons to realize the lifting and lowering operations of the lifting platform. The automatic control method realizes more precise operation of the lifting platform through the control of encoders such as PLC.


    Full Automatic Electrical Mobile Scissor Lift TableAuto Electrical Mobile Scissor Lift Table



    Product Details

    Self-Propelled Electrical Mobile Scissor Lift Table<img alt="Full Automatic Electrical Mobile Scissor Lift Platform""Full Automatic Electrical Hydraulic Scissor Lift";"300 500 Kg Electric Hydraulic Scissor Lift Platform" test="" chinatransfercart.com="" photo="" pl161101423-remark.jpg"="" style="max-width:650px;">Full Automatic Electric Mobile Scissor Lift Table

    Product Parameter

    Load Capacity500kg
    Capacity-Extension Deck110kg
    Max Number of Workers4
    Max Working Height8m
    Max Platform Height6m
    Extension Deck Size0.9m
    Min Ground Clearance(Stowed)0.1m
    Min Ground Clearance(Elevated)0.015m
    Wheelbase1.87m
    Min Turning Radius(Inside)0m
    Min Turning Radius(Outside)2.4m
    Lifting Motor/Driving Motor24v/4.5kw
    Battery4×6V/200Ah
    Charger24v/30A
    Max Grade Ability25%
    Self Weight2250kg

    Product Feature
