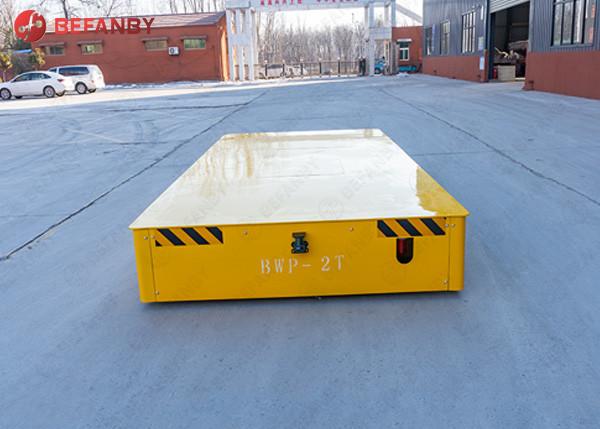

Automatic Battery Trackless Transfer Cart

Product Description

One of the characteristics of trackless transfer cart is their flexibility. Traditional rail-mounted carts need to rely on fixed rails for movement, while trackless transfer carts do not have this limitation. It can travel freely on different surfaces and adapt to various complex working environments. This flexibility enables trackless transfer carts to handle a variety of different transfer carts and provide higher work efficiency.

In addition, trackless transfer carts also have a large carrying capacity. It uses a powerful motor and a solid structural design to carry large amounts of material while maintaining stability and balance. This allows it to handle large material handling tasks, improve work efficiency, and reduce labor costs.

The working principle of the trackless transfer cart is to drive the movement of the vehicle through an electric motor. It uses an advanced navigation system that can navigate autonomously, identify and avoid obstacles. This enables automated operation of trackless transfer carts, reducing the risk of human error and improving work safety.

Application

Product Details

Product Parameter

Model		BWP-2T	BWP-5T	BWP-10T	BWP-15T	BWP-20T	BWP-25T	BWP-30T	BWP-40T	BWP-50T	BWP-60T	BWP-70T	BWP-80T	BWP-100
Rated load(t)		2	5	10	15	20	25	30	40	50	60	70	80	100
Table Size	Length(L)	2000	2200	2300	2400	2400	3500	3500	5000	5500	5600	6000	6500	6600
	Width(W)	1500	2000	2000	2100	2200	2200	2200	2500	2600	2500	2600	2800	3000
	Heigth(H)	450	500	550	600	600	700	700	800	800	850	900	950	1200
Wheel Base(mm)		1080	1650	1650	1600	1650	1650	1650	2000	2000	1800	1850	1950	2000
Axle Base(mm)		1380	1680	1700	1830	1850	2700	2700	3600	2850	2900	3500	3500	4000
Wheel Dia.(mm)		Φ250	Φ300	Φ350	Φ400	Φ400	Φ450	Φ450	Φ500	Φ600	Φ600	Φ600	Φ600	Φ600
Wheel Quantity(pcs)		4	4	4	4	4	4	4	4	4	4	6	6	8
Ground Clearance(mm)		50	50	50	50	50	50	50	50	50	75	75	75	75
Running Speed(mm)		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-18
Motor Power(kw)		2*1.2	2*1.5	2*2.2	2*3.5	2*4.5	2*5.5	2*5.5	2*6.3	2*7.5	2*10	2*12	30	40
Batter Capacity(Ah)		250	180	250	330	400	400	450	440	500	600	600	800	1000
Battery Voltage(V)		24	48	48	48	48	48	48	72	72	72	72	72	72
Running Time When Full Load		2.5	2.88	2.8	2.3	2.2	1.8	2	2.6	2.5	2.2	1.8	2	1.9
Running Distance for One Charge(Km)		3	3.5	3.4	2.8	2.7	2.2	2.4	3.2	3	2.7	2.2	2.4	2.3
Max Wheel load(KN)		14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4	152	185	190
Reference Wight(t)		2.3	3.6	4.2	5.5	5.9	6.5	6.8	7.6	8	10.8	12.8	14.6	26.8
