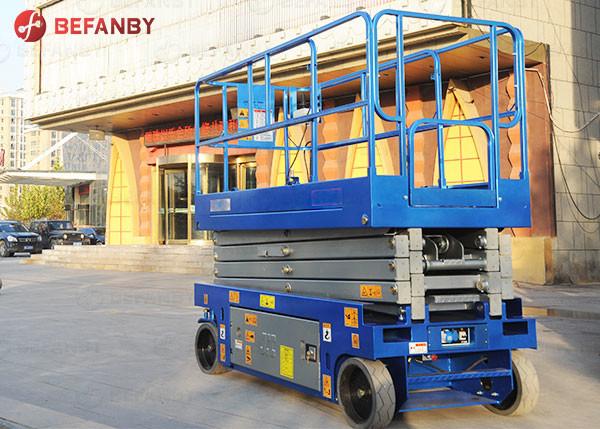

Self-Propelled Hydraulic Aerial Work Platform

Product Description

A self-propelled lifting platform is a device that can move up and down and is used to lift workers or objects to a certain height. It consists of chassis, lifting device, control system and operating platform. The chassis is usually made of high-strength steel and has good stability and load-bearing capacity.

The lifting device is driven by hydraulic or electric motor and can achieve smooth up and down movement. The control system is responsible for commanding and monitoring the operation of the lifting platform to ensure the safety of the operation. The operating platform provides a suitable work space and human-computer interaction interface.

The usage scenarios are also very wide, especially in the logistics, warehousing and construction industries. Efficient and safe. They can complete high-altitude operations quickly and efficiently, improving work efficiency. At the same time, the self-propelled lifting platform is equipped with various safety protection devices, such as anti-skid plates, guardrails, limiters, etc., to ensure the safety of operators.

Product Details

<img alt="Full Automatic Hydraulic Aerial Work Platform""Self-Propelled Electric Scissor Lift";"Battery Powered Full Automatic Electric Lift Platform""4-12M Self-Propelled Hydraulic Scissor Lift Platform""300 500 Kg Electric Hydraulic Scissor Lift Platform" test="" chinatransfercart.com="" photo="" pl161101423-remark.jpg"="" style="max-width:650px;">

Product Parameter

Load Capacity	500kg
Capacity-Extension Deck	110kg
Max Number of Workers	4
Max Working Height	8m
Max Platform Height	6m
Extension Deck Size	0.9m
Min Ground Clearance(Stowed)	0.1m
Min Ground Clearance(Elevated)	0.015m
Wheelbase	1.87m
Min Turning Radius(Inside)	0m
Min Turning Radius(Outside)	2.4m
Lifting Motor/Driving Motor	24v/4.5kw
Battery	4×6V/200Ah
Charger	24v/30A
Max Grade Ability	25%
Self Weight	2250kg

Product Feature
