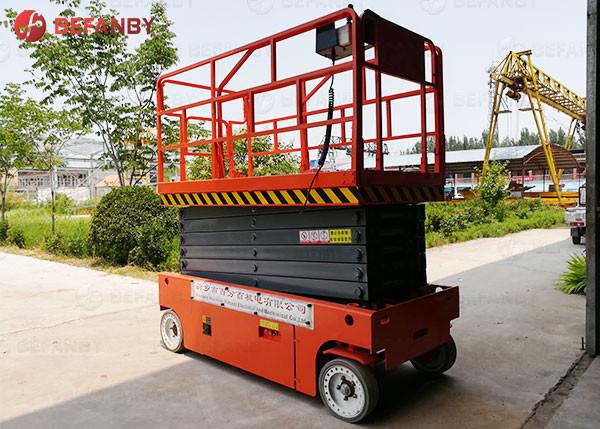

Self-Propelled Mobile Electric Scissor Lift

Product Description

The self-propelled lifting platform is a device with lifting function and is widely used in logistics, warehousing, manufacturing and other fields. Its function is to help people carry and operate items between different heights, greatly improving work efficiency.

First, let’s understand how it works. The self-propelled lifting platform realizes the lifting and movement of goods through electric or hydraulic mechanisms. It usually consists of a platform, lifting mechanism, control system, etc. There are anti-skid devices on the platform to ensure the safety of operators.

The lifting mechanism is the core component of the self-propelled lifting platform. It uses the pressure of hydraulic oil or the driving force of the motor to achieve the lifting function. The control system can control the rising, falling, stopping and other actions of the lifting platform, making the operation more convenient and flexible.

According to different usage scenarios, self-propelled lifting platforms can be divided into two types: fixed and mobile. Fixed lifting platforms are suitable for fixed places, such as warehouse shelves, production workshops, etc. The mobile lifting platform can be moved as needed and is used for temporary work sites or situations where the site is not fixed. In addition, according to different lifting methods, self-propelled lifting platforms can also be divided into hydraulic and electric.

Product Details

<img alt="Self-Propelled Electric Scissor Lift";"Battery Powered Full Automatic Electric Lift Platform""4-12M Self-Propelled Hydraulic Scissor Lift Platform""300 500 Kg Electric Hydraulic Scissor Lift Platform" test="" chinatransfercart.com="" photo="" pl161101423-remark.jpg"="" style="max-width:650px;">

Product Parameter

Load Capacity	500kg
Capacity-Extension Deck	110kg
Max Number of Workers	4
Max Working Height	8m
Max Platform Height	6m
Extension Deck Size	0.9m
Min Ground Clearance(Stowed)	0.1m
Min Ground Clearance(Elevated)	0.015m
Wheelbase	1.87m
Min Turning Radius(Inside)	0m
Min Turning Radius(Outside)	2.4m
Lifting Motor/Driving Motor	24v/4.5kw
Battery	4×6V/200Ah
Charger	24v/30A
Max Grade Ability	25%
Self Weight	2250kg

Product Feature

Shipping

Company Profile

Related Products

Product Tap: Material Handling Cart , Rail Transfer Cart

Xinxiang Hundred Percent Electrical And Mechanical Co., Ltd.(BEFANBY) is a professional international material handling equipment company integrating R&D, design, production and sales. It has a modern management team, technical team and production technician team.The company was established in September 2003 and is located in Xinxiang, Henan. BEFANBY can not only provide transfer cart quotations, but also provide you with satisfactory handling solutions.

BEFANBY has an annual production capacity of more than 1,500 sets material handling equipment, which can carry 1-1,500 tons of workpieces. With more than 20 years of experience in the design of electric transfer carts, it already has the unique advantages and mature technology of designing and producing heavy-duty AGV and RGV. The main products include AGV (heavy duty), RGV, KPD low-voltage rail type, KPX battery type, KPT towing cable type, KPJ cable reel type, KPC sliding contact line type, BWP trackless type, KP unpowered type, BZP turntable , BWT flatbed trailer and other eleven series. Including conveying, turning, coil, ladle, painting room, sandblasting room, ferry, hydraulic lifting, traction, explosion-proof and high temperature resistant, monorail, generator power, railway maintenance cart, railway and road tractor, locomotive turntable and other hundreds of handling equipment and a variety of transfer cart accessories. Among them, the explosion-proof battery electric transfer cart has obtained the national explosion-proof product certification, number: CNV21.0215X.

BEFANBY products are sold to all over the world, such as United States, Canada, Mexico, Germany, Chile, Russia, Saudi Arabia, the United Arab Emirates, Thailand, Singapore, Indonesia, Malaysia, Australia, South Korea and other more than 90 countries and regions.
