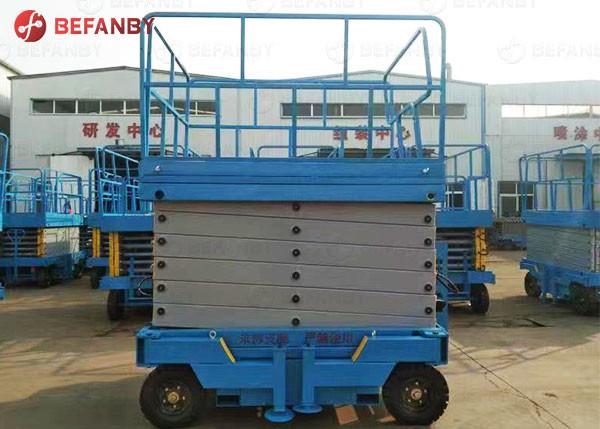

    Cleaning Elevator Hydraulic Towed Scissor Lift Platform

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : towed lift platform
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1500 set/sets, per year
    Delivery Time : 20-30 days as usual delivery
    • Product Details
    • Company Profile

    Cleaning Elevator Hydraulic Towed Scissor Lift Platform

    Cleaning Elevator Hydraulic Towed Scissor Lift Platform

    Product Description

    Scissor lift platform is usually composed of three parts: platform, scissor lifting mechanism and base. The platform is located on the top, which is mainly to bear the load for the staff to carry out various high-altitude operations. Scissor lifting mechanism is the key component of lifting platform, different lifting platform has its own scissor lifting mechanism, from low lifting to high lifting, the number of scissor rod is increased, the arrangement of hydraulic cylinder is also different, the number of arm rod of scissor lifting mechanism and the arrangement of hydraulic cylinder is determined by the lifting height. The base is located at the bottom, on which there are legs, tires, fuel tanks and other components.


    Towed lifting platform is easy to move, suitable for all kinds of rugged terrain in the field, a wide range of space operations, mainly used in construction, bridge construction, shipbuilding, airports, mines, ports, communication and power facilities construction and outdoor advertising construction machinery and equipment.


    Cleaning Elevator Hydraulic Towed Scissor Lift PlatformCleaning Elevator Hydraulic Towed Scissor Lifting Platform



    Product Details

    electric Elevator Hydraulic Towed Scissor Lift PlatformCleaning Elevator Hydraulic Towed 6m Scissor Lift PlatformCleaning Elevator Hydraulic 6m 8m 12m Towed Scissor Lift Platform

    Product Parameter

    Load Capacity500kg
    Capacity-Extension Deck110kg
    Max Number of Workers4
    Max Working Height8m
    Max Platform Height6m
    Extension Deck Size0.9m
    Min Ground Clearance(Stowed)0.1m
    Min Ground Clearance(Elevated)0.015m
    Wheelbase1.87m
    Min Turning Radius(Inside)0m
    Min Turning Radius(Outside)2.4m
    Lifting Motor/Driving Motor24v/4.5kw
    Battery4×6V/200Ah
    Charger24v/30A
    Max Grade Ability25%
    Self Weight2250kg

    Product Feature

    Cleaning Elevator Hydraulic Towed Scissor Lift Platform


    Shipping

    Cleaning Elevator Hydraulic movable Scissor Lift Platform

    Company Profile

    Cleaning Elevator Hydraulic Towed Scissor Lift table


    Cleaning Elevator Hydraulic hand push Scissor Lift Platform

    Cleaning Elevator Hydraulic Towed Scissor Lift Platform
